LeMans guillotine shears

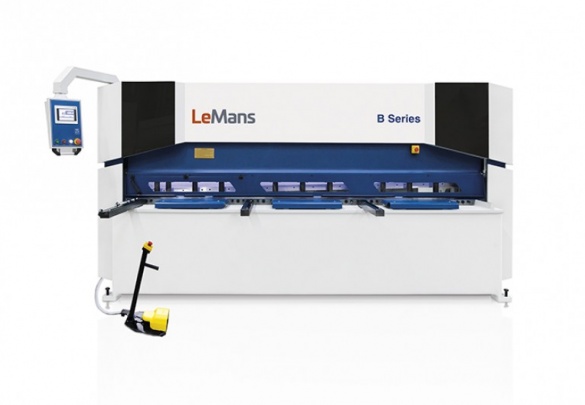

SWING BEAM HYDRAULIC GUILLOTINE SHEARS

Increased productivity with double speed concept. 50% more cuts/minute with half of the original cutting capacity. Shears cutting for materials with thickness from 6 mm up to 25 mm, cutting length from 2 meters up to 6 meters. Shears provide high cutting quality with low cutting angle design machine concepts. Unique construction feature is the fixed angle of cut.

2019 Shears Catalogue LeMans.pdf

• The LeMans press brakes produced in Turkey according to many years of knowledge and experience.
• LeMans Hydraulic Guillotine Shears for sheets up to 50% faster cutting and efficiency achieved with double speed concept.
• Shears cutting thickness from 6mm up to 25mm, cutting length from 2 meters up to 6 meters. Shears provide high cutting quality with small cutting angle design concepts.
• Unique construction feature is the fixed angle of cut. Machine can be produced with automatic blade gap and stroke adjustment by CNC controller according to customer request. Machine body and upper beams made of steel has been designed for minimum stretch and optimum resistance criteria.
• 1000mm back gauge travel (stroke). performed with linear ball shaft, without backlash guide.
• Automatic swing-up feature of back gauge after 1000mm to more easily feed longer sheets with +/0.1mm positioning accuracy and programmable retract features.

Width: 1600mm; 2100mm; 3100mm; 4000mm; 6150mm
Controllers: ELGO, ESA, CYBELEC
Cutting thickness: up to 25mm

Options

STANDARD FEATURES

ELGO P40T Touch screen NC Control Unit
Rexroth / Hoerbiger hydraulic system
Manual blade gap adjustment system
1.000 mm NC Controlled, Programmable, motorized back gauge
Double Speed cutting machine concept
250 mm throat depth
Programmable back gauge retract feature
Back gauge swing-up feature for sheets longer than 1.000 mm
Stroke adjustment on the control panel for increasing stroke number for short cutting efficiency
Transfer table with roller balls
Upper blade 2 edges / Bottom blade 4 edges
Unique components that reduces maintenance need. Front support arms 1.000 mm, with ruler scale, T channel & flip stops
Front and side protective covers
Illumination cutting line
Emergency stop buttons
Front finger protection guard, 1.000 mm which has swing-up feature
Foot pedal
Special designed covers with movable controller arm
Emergency stop buttons

OPTIONAL FEATURES

Pneumatic Sheet support system (Type 1)
Pneumatic Sheet support system- with Return to sender feature (Type 2)
CNC controlled Auto blade gap adjustment system
Angular gauge 0-180º
Longer front sheet supports & squaring arm
Special throat depth 500 mm
Full length opening front finger guard
Laser guard for front finger protection
Special alloy blades
Laser cutting line
Oil cooler and oil heater
AC cooling unit electrical cabinet
Automatic or Manual central lubrication
CNC controlled front sheet feeder arms
Rear laser barrier with CE conformity
Machine without special design covers
