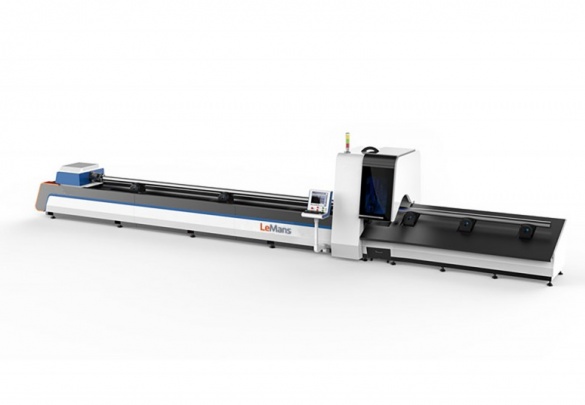

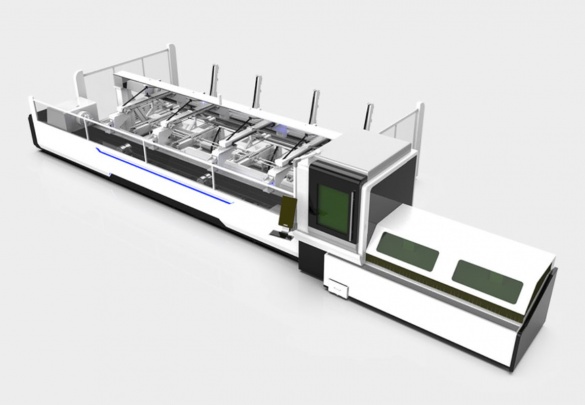

LM60 laser for tube cuttingBack
|Laser power||1000W 2000W 3000W 4000W|
|Working area||Hold diameter: 20mm-300mm|
|Repeat positioning accuracy||±0.02mm/m|
|Voltage and frequency||380V/50Hz/60Hz|

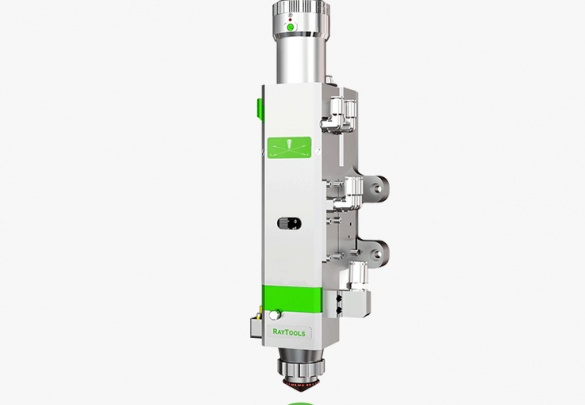

Autofocus Laser Cutting Head
• Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
• Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
• Long Life Time
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

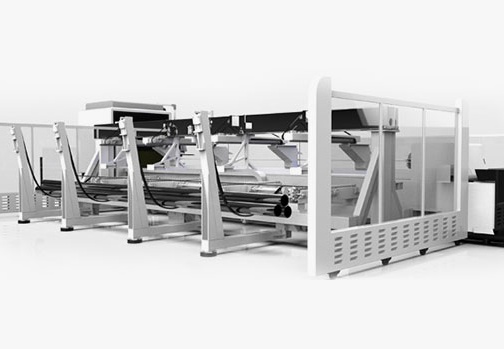

Full-automatic feeding and unloading material device
• Automatic Feeding
Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
• Automatic Unloading
The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.
Automatic Stroke Protection
Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk.

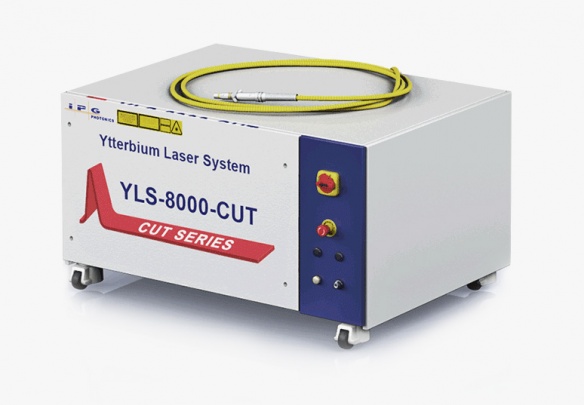

IPG Fiber Lasers Source
• World famous brand
LeMans laser cutting machine use YLS-CUT Series High Power Fiber Laser of IPG. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm.
• Long Service Life
Its performance is stable, the service life of key components can reach 100,000 hours, and the overall quality of the equipment is guaranteed.
• Stable Cutting Performance
Lasers produce superior beam quality, finer cut lines, higher productivity and better processing quality. The fully enclosed constant temperature laser working environment is more effective in ensuring the stable operation of the laser.

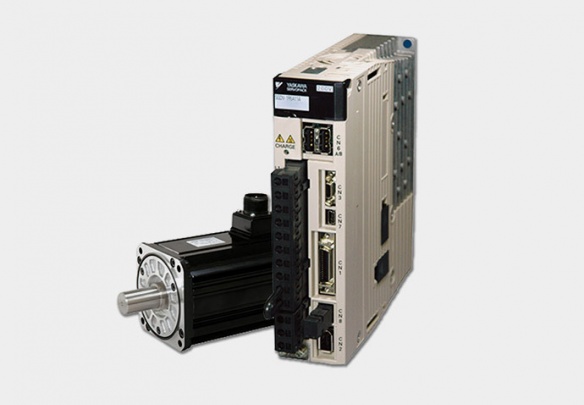

Yaskawa Servo Motors
• More accurate
It realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;
• Rotating speed is more faster
High speed performance, general rated speed can reach 2000~3000 rpm;
High strong anti-overload capability, load three times the rated torque, suitable for occasions with transient load fluctuations and fast start required;
Smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.

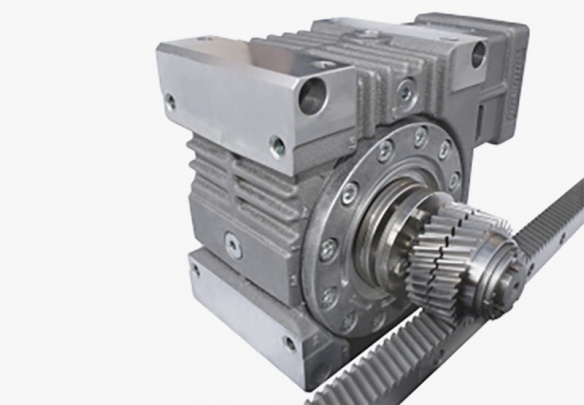

Atlanta DOUBLE rack and pinion system, installed in LeMans lasers is high precision solution, made in Germany. This system has ZERO backlash and provides high accuracy with big speeds and loadings.

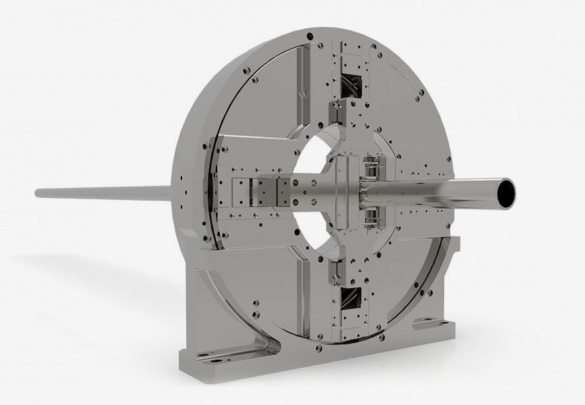

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.
