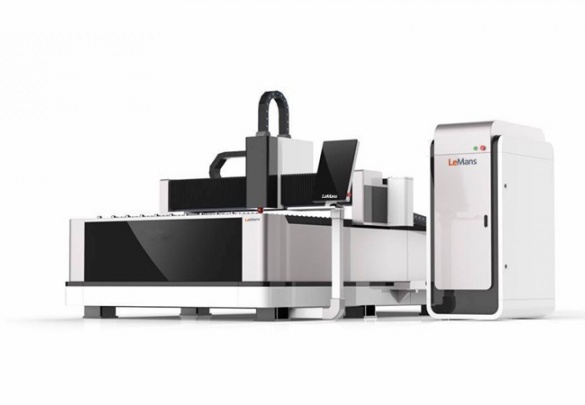

LM3015CN laser for metal sheet cuttingBack
|Laser power||1000W 1500W 2000W 3000W 4000W 6000W 8000W 10000W 12000W|
|Working area||3000mm x 1500mm up to 6000mm x 2000mm|
|Repeat positioning accuracy||±0.02mm|
|Voltage and frequency||

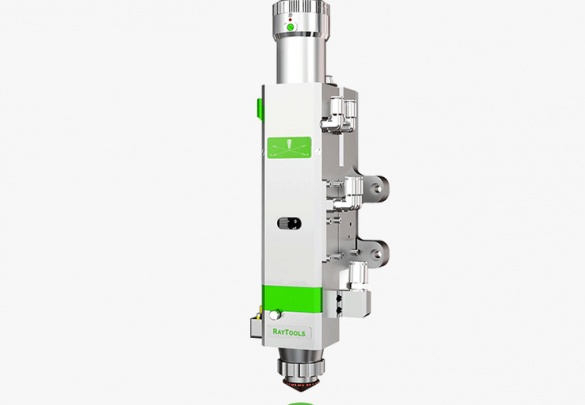

Autofocus Laser Cutting Head
• Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
• Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
• Long Life Time
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

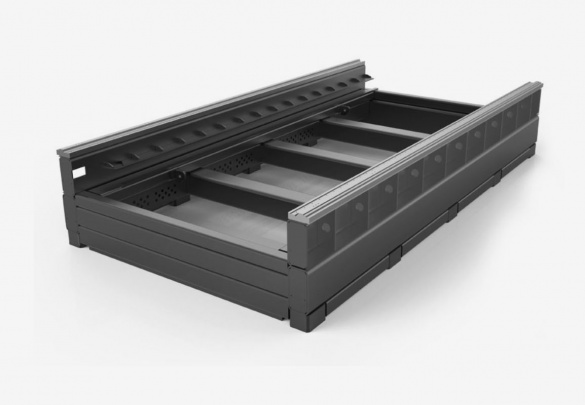

The Segmented Rectangular Tube Welded Bed
The internal structure of the frame adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the frame. High strength, stability, tensile strength, ensuring 20 years of use without distortion. Thickness of rectangular pipe wall is 10mm and weight is 5000 kg.

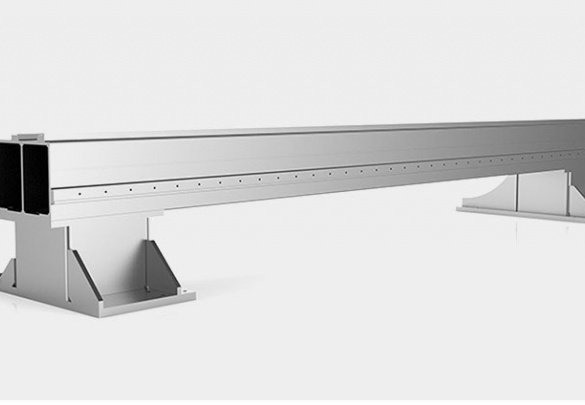

• High hardness
Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
• High speed
Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.

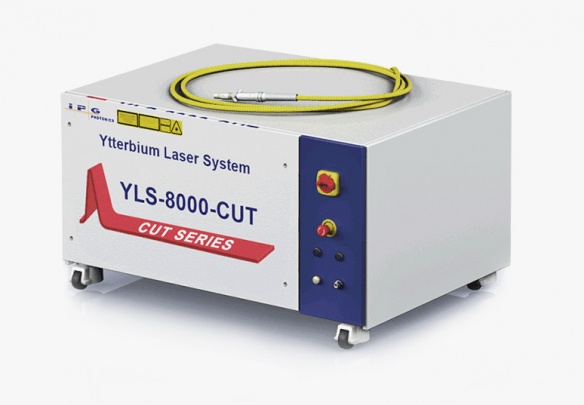

IPG Fiber Lasers Source
• World famous brand
LeMans laser cutting machine use YLS-CUT Series High Power Fiber Laser of IPG. Powerful cutting ability with stainless steel, aluminum and other metal materials, cutting thickness is up to 40mm.
• Long Service Life
Its performance is stable, the service life of key components can reach 100,000 hours, and the overall quality of the equipment is guaranteed.
• Stable Cutting Performance
Lasers produce superior beam quality, finer cut lines, higher productivity and better processing quality. The fully enclosed constant temperature laser working environment is more effective in ensuring the stable operation of the laser.

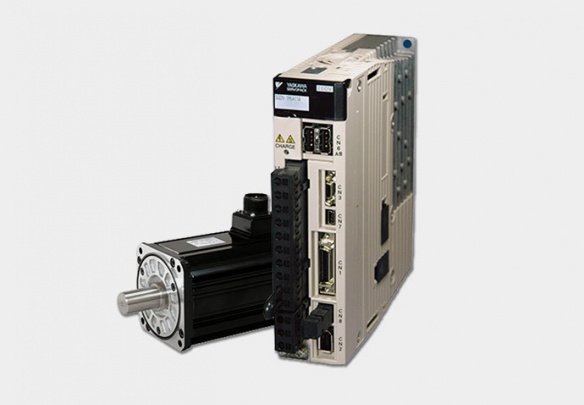

Yaskawa Servo Motors
• More accurate
It realizes closed-loop control of position, speed and torque; overcomes the problem of stepping motor out of step;
• Rotating speed is more faster
High speed performance, general rated speed can reach 2000~3000 rpm;
High strong anti-overload capability, load three times the rated torque, suitable for occasions with transient load fluctuations and fast start required;
Smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.

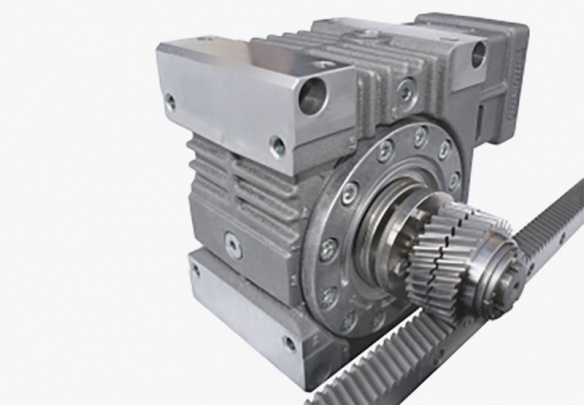

Atlanta DOUBLE rack and pinion system, installed in LeMans lasers is high precision solution, made in Germany. This system has ZERO backlash and provides high accuracy with big speeds and loadings.
